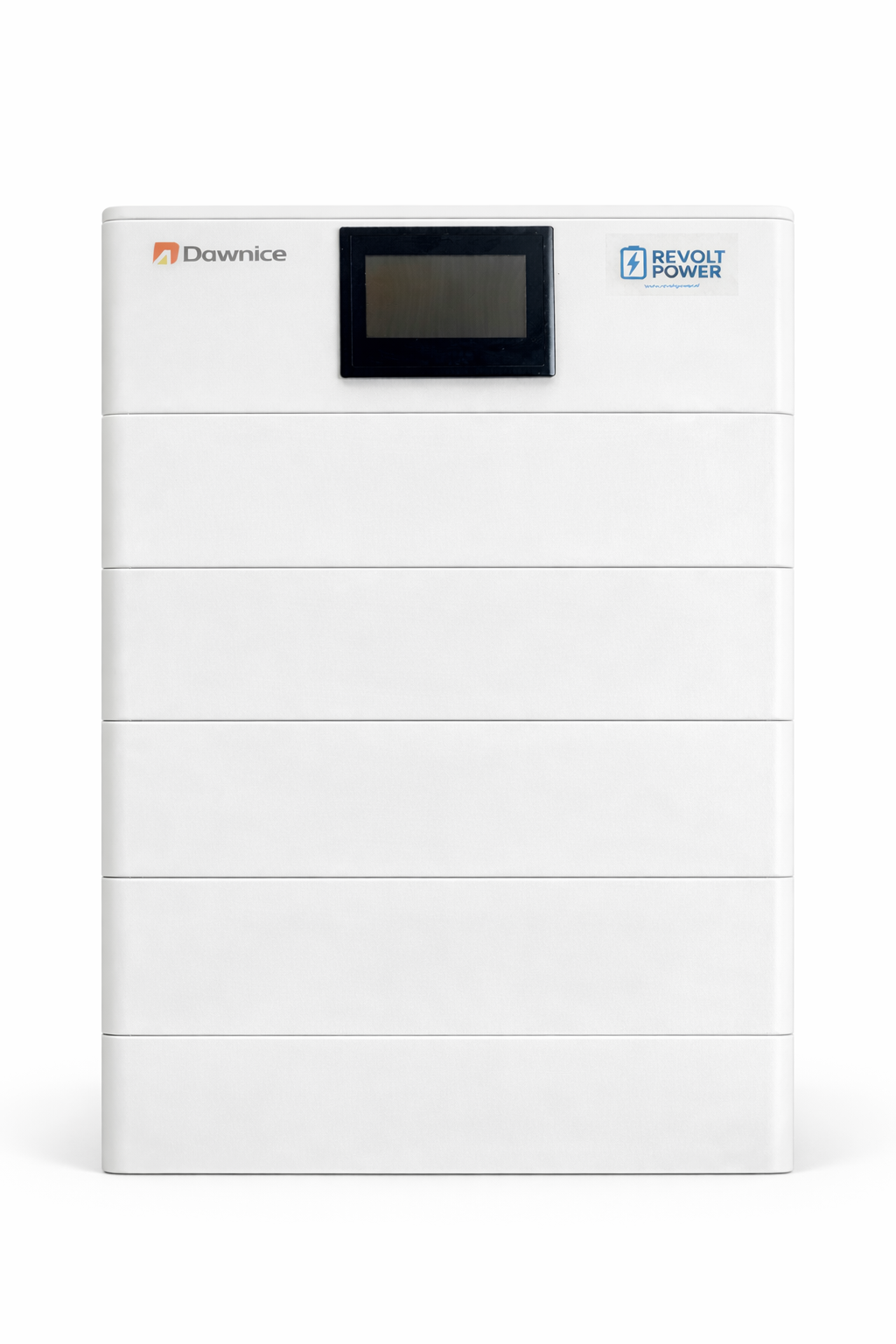

25 kWh stackable battery

This 25.60 kWh stackable high-voltage battery is a powerful, modular, and expandable energy solution for residential and small commercial applications. Thanks to its 256V high-voltage design and safe LiFePO₄ technology, this system combines high performance with maximum safety and a long lifespan.

The battery delivers a nominal energy of 25.60 kWh with a capacity of 100Ah and supports a maximum charge and discharge current of 100A. This makes it suitable for powerful hybrid inverters and energy storage systems.

Key features

• Nominal energy: 25.60 kWh

• Nominal voltage: 256V

• Capacity: 100Ah

• Charge/discharge current: max. 100A

• Voltage range: 224 – 288V

• Expandable: up to 6 units parallel for larger storage capacity

• Communication: CAN / RS485

• Cycle life: ≥ 6000 cycles at 80% DoD

• Designed lifespan: 10 years warranty / up to 15 years at 25°

Mechanical specifications

• Dimensions (L×W×H): 680 × 620 × 1155 mm

• Weight: 322 kg

• Installation: Modular stackable system

• IP rating: IP20 (suitable for indoor installation)
